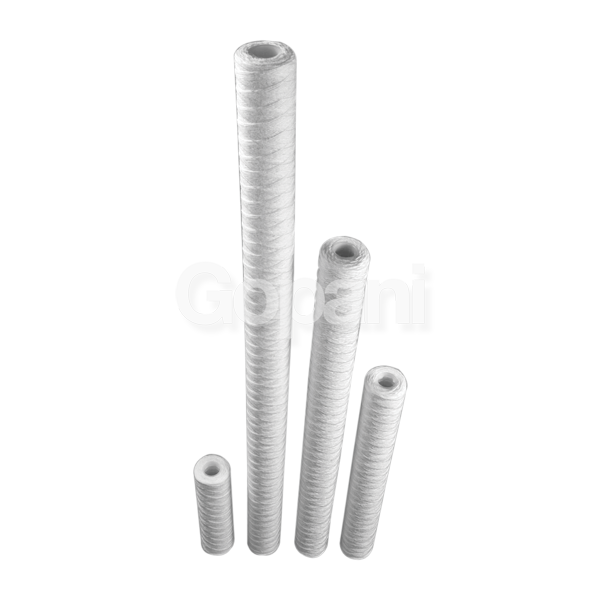

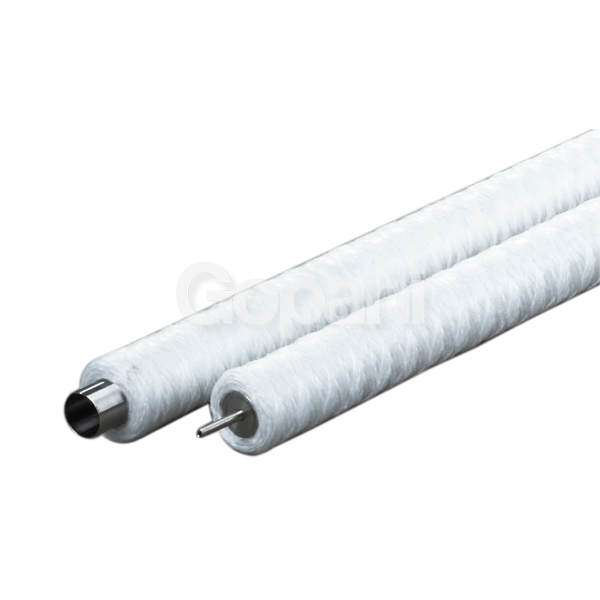

Gopani’s Clarywound Extreme filter cartridge comes with higher dirt holding capacity and designed for filtration excellence. The cartridge filter variant is engineered to perfection using the CNC machining process to construct a gradient depth filter that filters better, lasts longer and gives a consistent performance. We have the capability to offer wound filters with porosity as low as 0.5 microns.

Features and Benefits
  • High precision cartridge filter manufactured using best quality polypropylene yarn and core
  • True gradient density achieved as a result of modern manufacturing processes
  • Efficient filtration and high dirt holding capacity
  • Promises optimum performance for downstream equipment protection.
  • Optimized production to achieve accurate micron ratings from 0.5 to 150
Applications
  • Raw water treatment
  • Wastewater treatment
  • Electroplating
  • Power generation
  • Chemicals and pharmaceuticals
Specifications
  • Filter Media
    Polypropylene , Cotton , Glass-Fiber (Nylon, Rayon, Polyester, Other yarn types on request)
    Core
    Polypropylene , Glass filled Polypropylene , SS (304/304L/316/316 L), Tinned Steel (Other types on request)
    End Caps
    Polypropylene
    “O”-ring / Gasket
    Silicon, FKM, Buna-N, EPDM
  • 0.5, 1, 5, 10, 20, 25, 50, 100, 150 μm
  • Standard (OD 61 mm)
    ≥ 0.52 ft2 per 10” cartridge length
    Jumbo (OD 110 mm)
    ≥ 0.94 ft2 per 10” cartridge length
  • Recommended change-out differential pressure*
    0.14 MPa (1.4 bar; 20.3 psid) @ 21°C (69.8°F)
    Maximum operating temperature

    70°C ( 158°F )[Polypropylene with Polypropylene]

    120°C ( 248°F ) [ Cotton with SS core ]

    121°C ( 248.9°F ) [ Polyester with SS core ]

    140°C ( 284°F ) [ Nylon with SS core ]

    140°C ( 284°F ) [ Rayon with SS core ]

    350°C ( 662°F ) [ Glass fiber with SS core ]

  • Length
    9.75”, 10”, 20”, 30”, 40”, 50”,60”, 70”
    Standard OD/ID
    61±0.5 / 27.5±0.5 mm
    Jumbo OD/ID
    110±0.5 / 27.5±0.5 mm

Protect your expensive downstream filtration equipment with Clarywound Extreme string wound cartridge filter for pre-filtration processes.



Check out other string wound cartridge filter variants:





All Clarywound Cartridge Filters are:

• Customized to perfection based on application requirements
• Woven to offer a gradient depth for superior filtration
• Available in different length and material variants
• Designed to sustain low pressure drops and high flows
• 100% free from resin binders, lubricants, antistatic and release agents



All Clarywound cartridges are readily available for your convenience. We also offer scheduled delivery service to fulfill your annual requirement of filter cartridges.

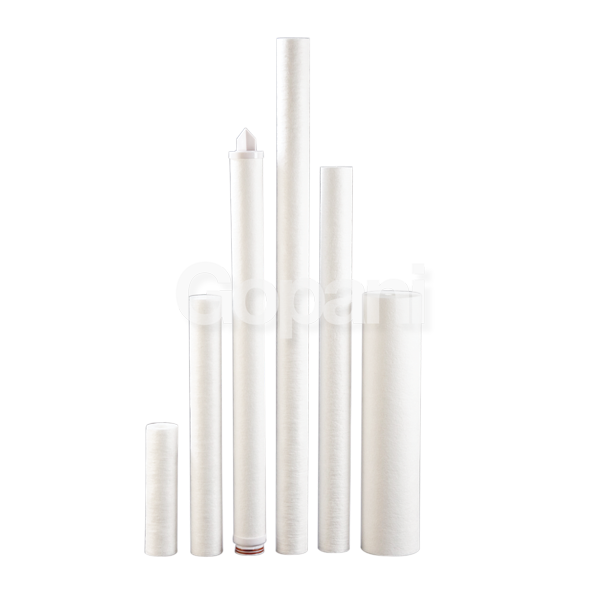

Melt Blown Cartridge Filters

Melt blown filter cartridges are produced from polymer granules, mostly polypropylene. The granules are melted, extruded, and blown onto a rotating spindle in such a fashion tha...

Know More

String Wound Cartridge Filters

Gopani’s string wound cartridge filters are engineered to offer excellent depth filtration and strong chemical resistance. We import the best quality yarn and manufacture struct...

Know More

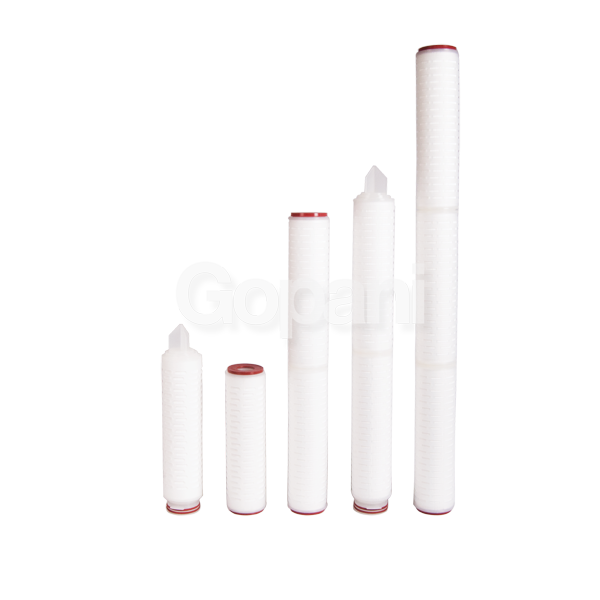

Pleated Cartridge Filters

By definition, pleated filters are surface filters with a bigger surface area. But with the advancements in technology, today we also have pleated filters which perform depth fi...

Know More

Resin Bonded Cartridge Filters (gRBC)

gRBC are our resin bonded cartridge filters. They are so called because they are produced from fibres which are bonded with phenolic resin. This kind of construction imparts exc...

Know More

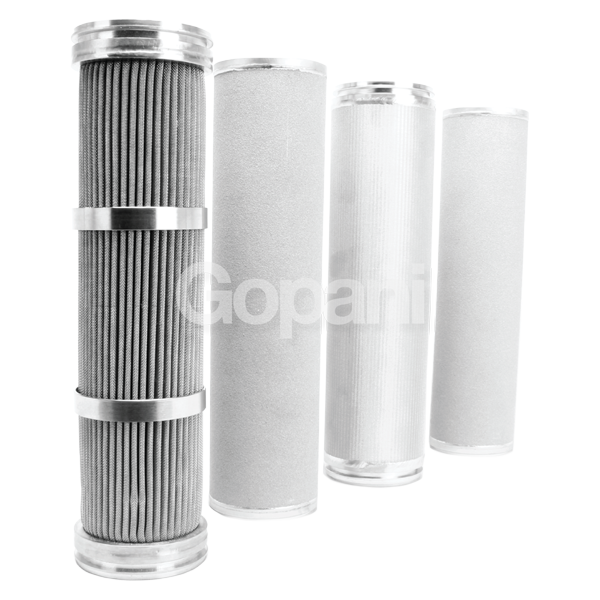

Metallic Sintered Cartridge Filters

One of the biggest advantages of metallic filter elements is that they can be easily backwashed and that too for hundreds of cycles without impacting the performance. We are ful...

Know More

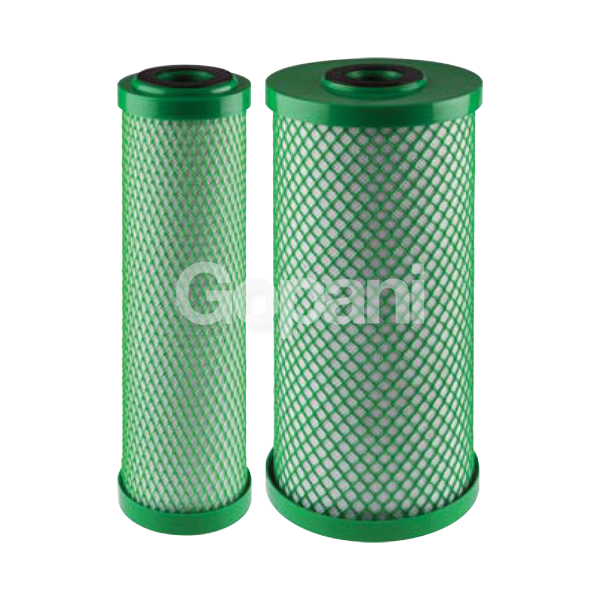

Clarycarb Activated Carbon Blocks

These filter cartridges are produced solely from activated carbon and are also referred to as activated carbon blocks. Meticulously sourced superior quality coconut shell is uti...

Know More

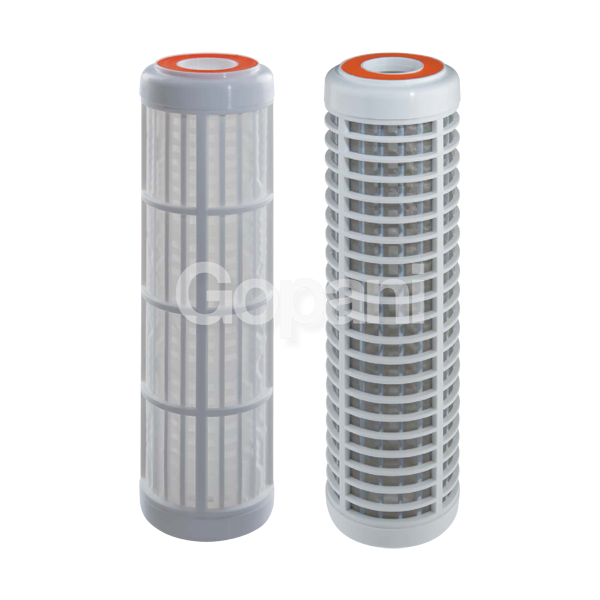

Washable Net Cartridge Filters
