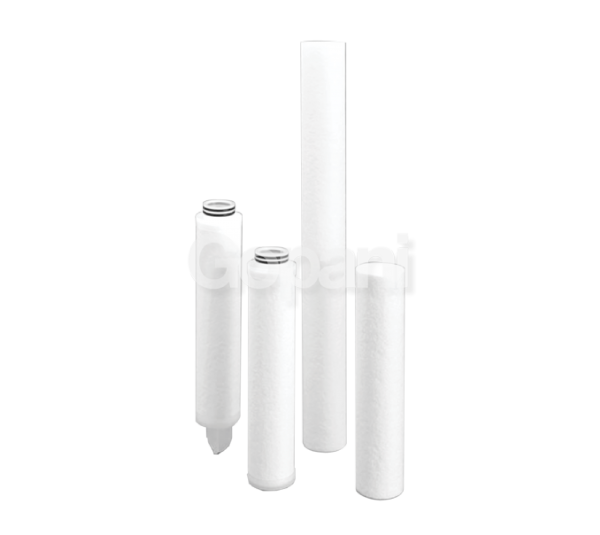

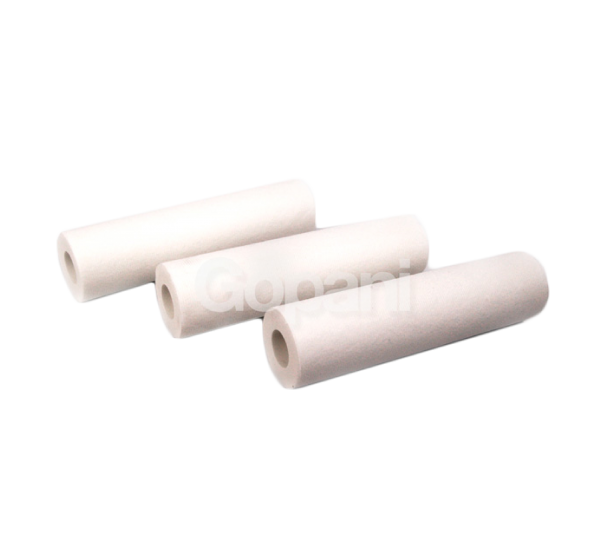

The Eco protect pp cartridge filters are designed using thermally bonded 100% polypropylene microfiber for superior chemical resistance and high purity filtration. The spun filter cartridge is an economical variant that is widely used for taste, odour and colour removal from liquids. It has a broad thermal and chemical compatibility; hence is a popular choice for applications that involve chemicals or operations at high temperatures. The cartridge filter is not only economical but also leaves a smaller footprint as it is very easy and safe to dispose the equipment via incineration, shredding and compaction.

Features and Benefits
  • 100% high quality virgin polypropylene construction
  • Broad chemical and thermal compatibility
  • Retention ratings and configurations to meet a wide range of applications and requirements
  • Unwelded seamless construction
  • Easy and safe to dispose
Applications
  • Water and waste water
  • Pre-filtration for Reverse Osmosis
  • Plating of metals
  • Photographic fluid filtration
  • Chemical filtration applications
  • Textile Printing Inks and specialty coatings
Specifications
  • Filter Media
    Polypropylene
    Endcaps, Core*
    High Strength Polypropylene
    “O”-ring / Gasket
    Silicon , FKM , Buna-N , EPDM
  • 1, 5, 10, 20, 40 μm
  • Standard (OD 61 mm)
    ≥ 0.52 ft2 per 10” cartridge length
    Jumbo (OD 110 mm)
    ≥ 0.94 ft2 per 10” cartridge length
  • Recommended change-out differential pressure
    0.14 MPa (1.4 bar; 20.3 psid) @ 21°C (69.8°F)
    Maximum operating temperature
    80°C ( 176°F )
  • Length
    10”, 20”, 30”, 40”, 50”, Others on request
    Standard OD/ID
    61±0.5 / 27.5±0.5 mm
    Jumbo OD/ID
    110±0.5 / 27.5±0.5 mm

RO Protect Eco Cartridges are available in various sizes micron ratings and end treatments. Different plastic end caps can be provided to fulfil fitment criteria for every filter line and for every industry.



Check out other melt blown cartridge filter variants:





All PP Melt Blown Cartridge Filters are:

  • Available for a wide range of applications and industries
  • Engineered for superior filtration, higher thermal stability and a long service life
  • Available in different length and material variants
  • Made from premium-grade virgin polypropylene
  • 100% free from resin binders, lubricants, antistatic and release agents



The RO protect ECO cartridges are readily available for delivery. We also offer scheduled delivery to fulfil your annual requirement.
