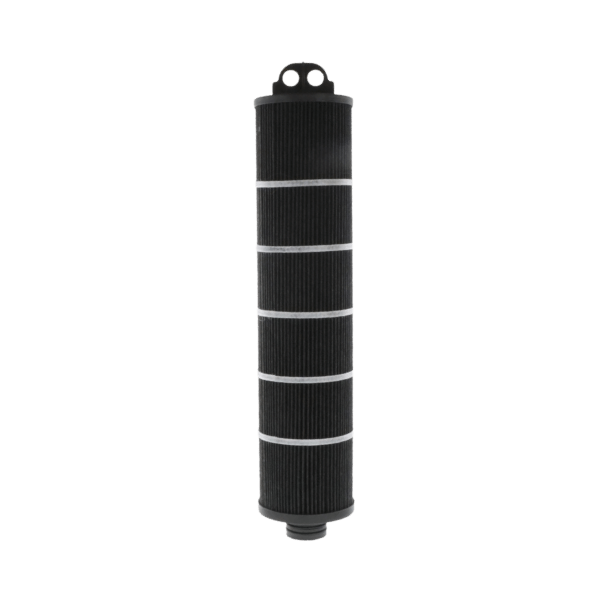

ClaryFlow BigBuddy Meltblown Cartridge Filter

ClaryFlow Big Buddy Meltblown Cartridge Filters have excellent thermal stability and are perfect for application where chemical compatibility is desired. The 100% polypropylene depth cartridge filter variant with EPDM (Ethylene Propylene Diene Monomer) O-rings effectively filters sediments and gelatinous substances. The filter cartridges exhibit superior performance and are easy to install, service and replace.

Features and Benefits

Minimum contaminant unloading and maximum contaminant removal
Perfect for applications that involve corrosive liquids and chemicals
Available in a wide range of micron ratings, including one micron absolute
Effective in filtration of sediments and gelatinous substances

Applications

Water filtration for

Residential Properties
Commercial Facilities
Industrial Applications

Specifications

Materials

Filter Media

Meltblown

Endcaps, Core*

PP & PFG

Center Tubes

PP
Maximum operating conditions

Maximum Flow Rate*

100 gpm (27 m^3/hr)

Maximum temperature

125℉ (52℃)

Maximum working pressure

125 psi (8.75 bar)

Maximum change pressure

40 psi (2.7 bar)

Chemical Resistance

Excellent

Length (media)

30″

O-ring (dual)

Silicon, Buna-N, FKM, EPDM

Check out other ClaryFlow Meltblown Big Buddy Cartridge Filter Variants:

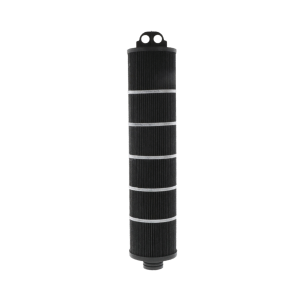

: ClaryFlow Big Buddy Activated Carbon

: ClaryFlow Big Buddy Pleated

All ClaryFlow BigBuddy cartridge filters are:

• All polypropylene construction using best quality polypropylene
• Apt for high flow rates from 378.54 to 567.81 LPM (100 to 150 GPM)
• Filters at operating temperature as high as 79.44 °C (175 F)
• Excellent chemical resistance
• 100% free from resin binders, lubricants, antistatic and release agents
• Engineered for a long service life and excellent filtration capacity
