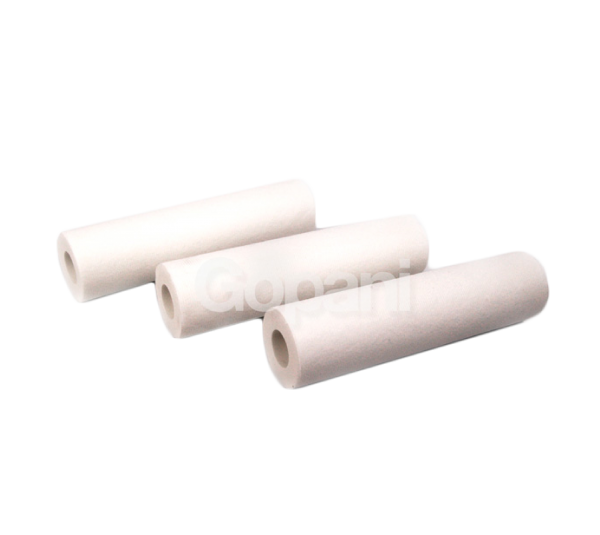

The Claryfil Visco M cartridge filter is made entirely of molded layers, to provide excellent filtration capabilities for highly viscous liquids. It is engineered for applications that involve high temperature liquids and organic solvents. Olefin filters are not suitable for such applications, here the Claryfil Visco M variant fills the gap. The variant has a polyester medium and is designed to meet diverse process requirements. The molded layers of the spun cartridge filter provide structural support to the filter. The filter variant is manufactured for a controlled gradient porosity, this not only enhances the filtration capabilities of the variant but also extends the service life of the variant.

Features and Benefits

  • Made from Polyester fiber
  • Suitable for applications involving highly viscous liquids, high temperatures and organic solvents
  • Thermal bonded fibres impart high filtration efficiency
  • High precision and extended service life are achieved by controlling the fiber density gradient
  • Pre washed for contaminant removal from the filter media
  • Premium-grade materials that meet the FDA approved standards
Applications
  • Food and drinking water
  • Electronic components
  • Chemical engineering
  • Water processing
  • Other high-temperature or viscous liquid applications
Specifications
  • Media
    Polyester
    Caps
    Available on request
    Core
    –
    O-ring/Gasket
    Silicon , FKM , Buna-N , EPDM
  • 1, 3, 5, 10 μm
  • Maximum forward differential pressure
    0.40 MPa (4.0 bar, 58 psi) @ 20°C (68°F)
    Recommended change-out diff. pressure
    2.4 bar (35 psi)
    Maximum operating temperature
    100°C (212°F)
  • Length
    10”, 20”, 30”, 40”, 50”
    Diameter(Outer/Inner)
    65±1.5 / 30±1.5 mm



Check out other melt blown cartridge filter variants:







All PP Melt Blown Cartridge Filters are:

  • Available for a wide range of applications and industries
  • Engineered for superior filtration, higher thermal stability and a long service life
  • Available in different length and material variants
  • Made from premium-grade virgin polypropylene

For part numbers & ordering information of custom filter elements please contact Gopani.
