Stainless Steel Filter Housings | Diverse Industrial Applications

Features and Benefits

Each housing we offer undergoes hydrostatic leak and burst pressure tests to ensure safe and consistent operation.
Lower pressure drop at higher flow rate, larger connections, air venting provision, robust knife-edge, zero bypass and leak proof sealing.
Clamp closure for easy opening and quick changeouts.
Sealed with top-seated Buna-N/Silicon/Viton ‘O’ ring by positive tangential contact that eliminates accidental misplacement.
Smooth surface to avoid retention of contaminants on the surface of the housings.

Applications

Raw water treatment
Waste water treatment
Electroplating
General industrial applications

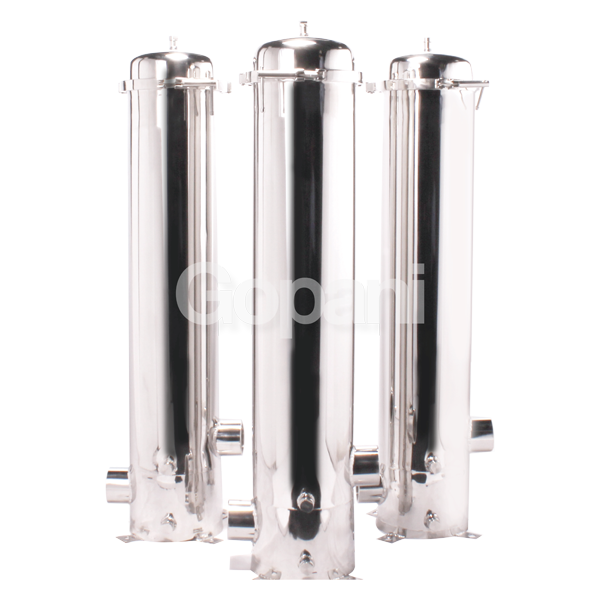

Clary-T Industrial are SS (stainless steel) filter housings meant for general industrial purposes. They can be utilized in a wide array of applications. These housings undergo a set of tests for quality assurance. We produce them with different types of connection sizes so as to match various flow rating and piping configurations.

Specifications

Materials

SS 304, SS 316, SS 316L, Duplex SS 2205, Duplex SS 2507, CS, MS, CSRL, MSRL

Clamp

SS 304

O-ring

Silicon, FKM, EPDM, PTFE, Other on request
Design Code

ASME Section VIII Division-1, GEP (Good Engineering Practice), UM-stamp, U-stamp, PED 97/23/EC, CE marking
Surface Finish

Interior/exterior

Matt finish, Mirror finish, Electro Polish (Optional)
Connections

Inlet/outlet

BSP, NPT, DIN Flange, ASA 150# Flange, BS-10 Table `D’ / `E’ / `F’ Flange , Tri-clover (1⁄2”, 3⁄4”, 1” , 11⁄2” , 2” , 21⁄2”, 3”, 4”, 5”, 6”, 8”, 10’, 12”)*

Vent

NPT (1⁄2”,3⁄4”,1”), BSP(1⁄2”,3⁄4”,1”) , Tri-clover (1⁄2”, 1”)

Drain

NPT (1⁄2”,3⁄4”,1”), BSP(1⁄2”,3⁄4”,1”) , Tri-clover (1⁄2”, 1”)
Maximum Operating Pressure

0.7 MPa (7.0 bar, 101.5 PSI)
Maximum Operating Temprature

65°C (149°F)
Cartridge Configuration

DOE, SOE ( Fin/222, Fin/226, Flat/222, Flat/226)
Cartridge Length/diameter

10”, 20“, 30” or 40” / 60 mm (2.75” ) to 112 mm (4.5”)
Note

Preliminary specifications and features are subject to change.
